Finishing up the back covers and system controls.
Previous Page Next Page
The Rise of R2G2
Locked
Unlocked
Opened

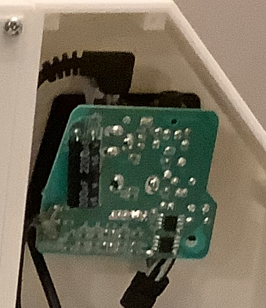

Capacitor had to be moved to other side of circuit board so Wing back would fit.

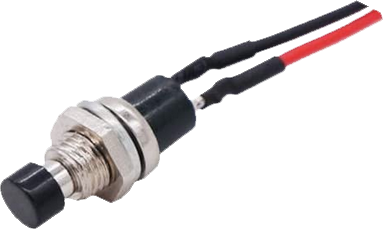

ShutDown

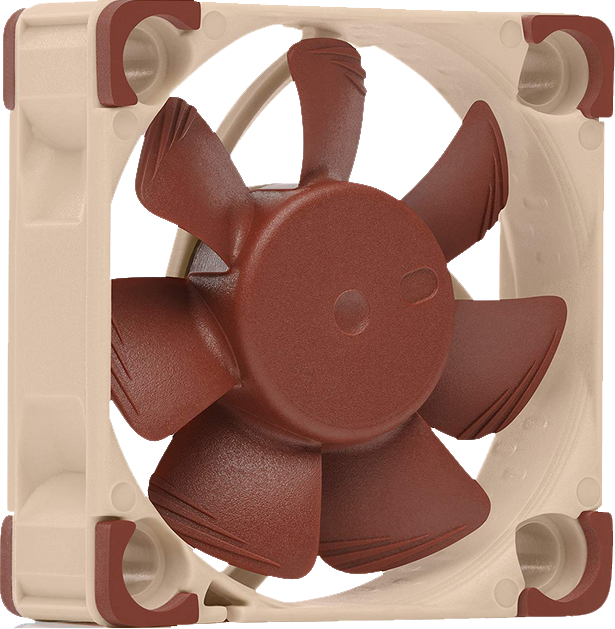

Fan
Selection Switch Jacks

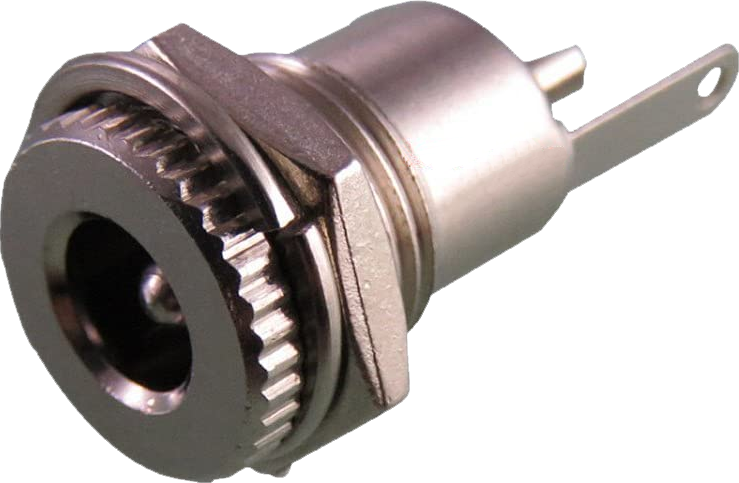

Power
Power Off

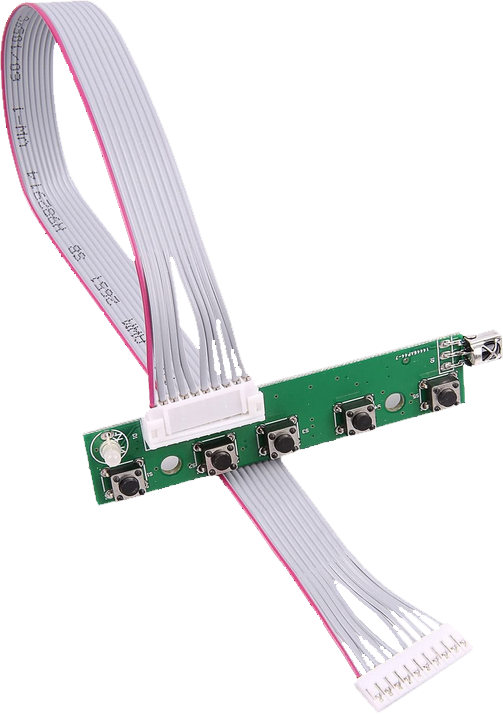

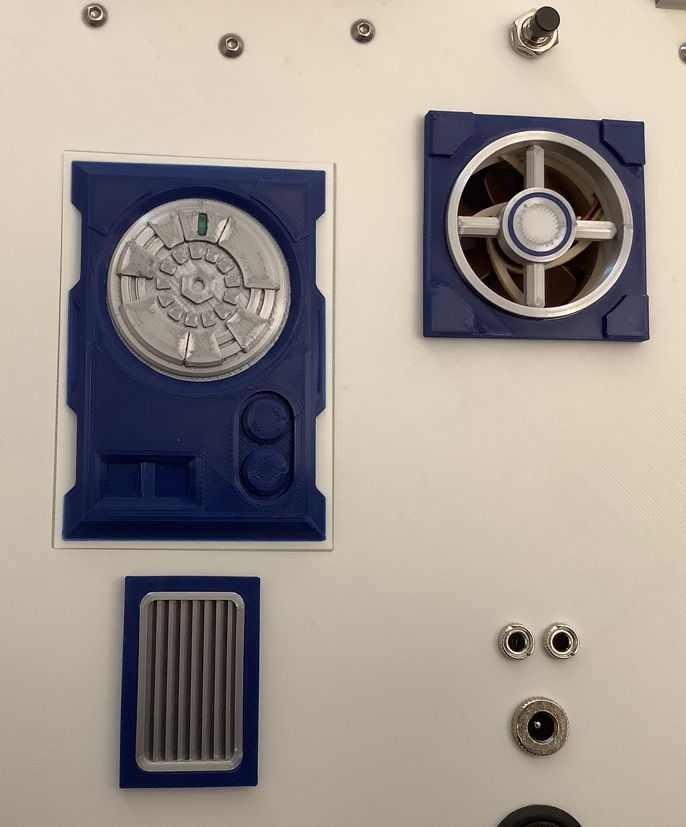

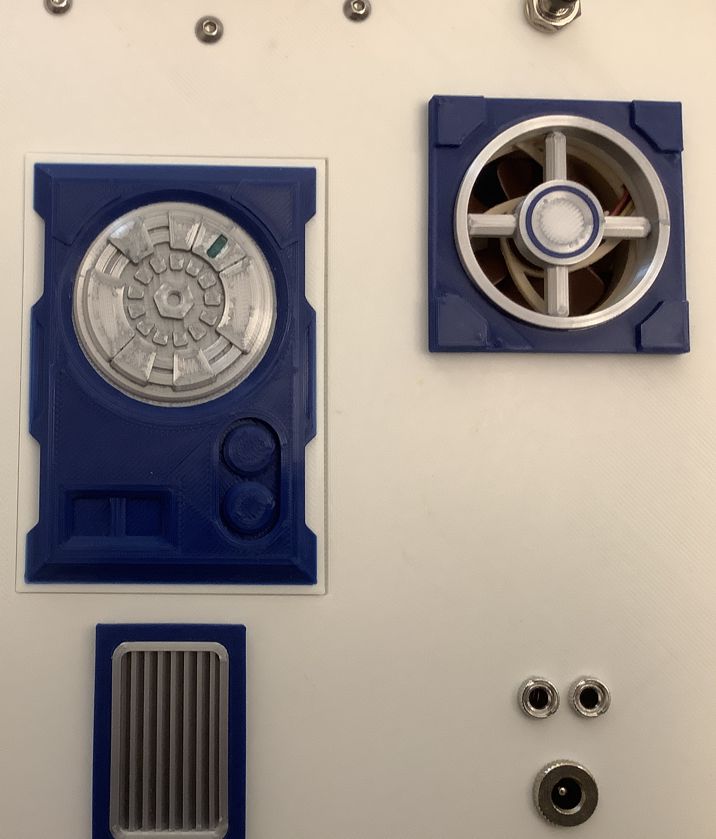

Display Controls
External Display Buttons
Air Vent
Air Vent

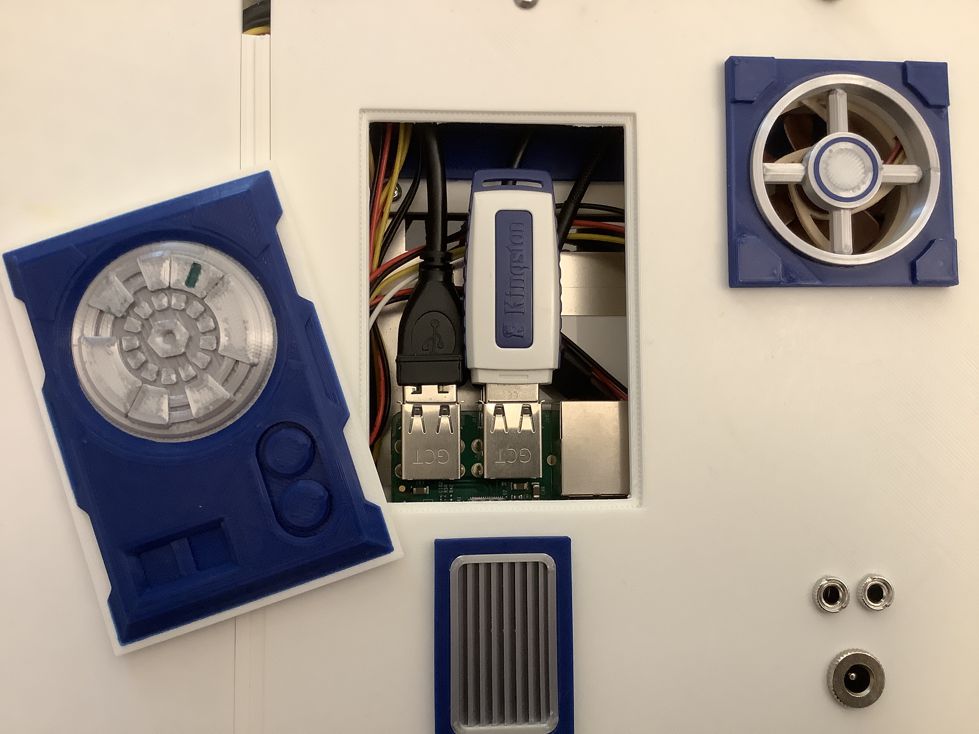

USB Access Hatch

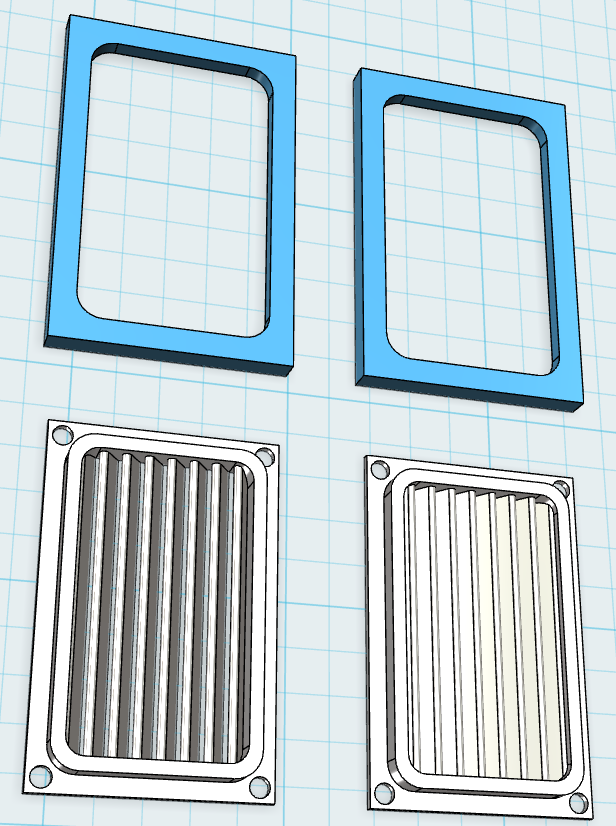

Air Vent Grills

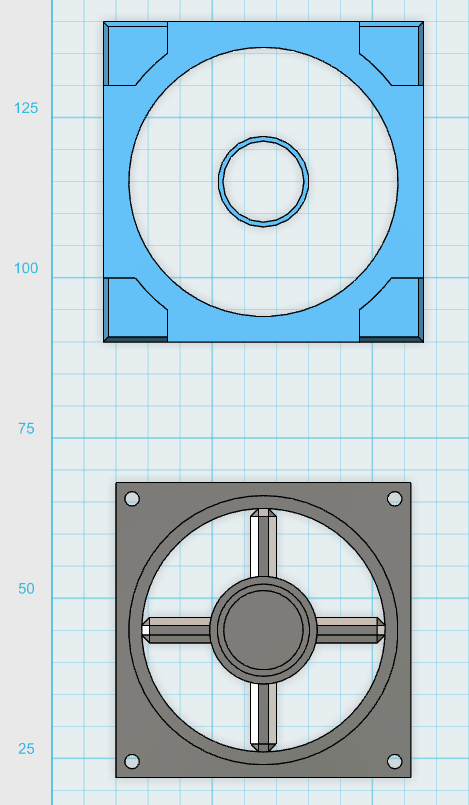

Fan Grill

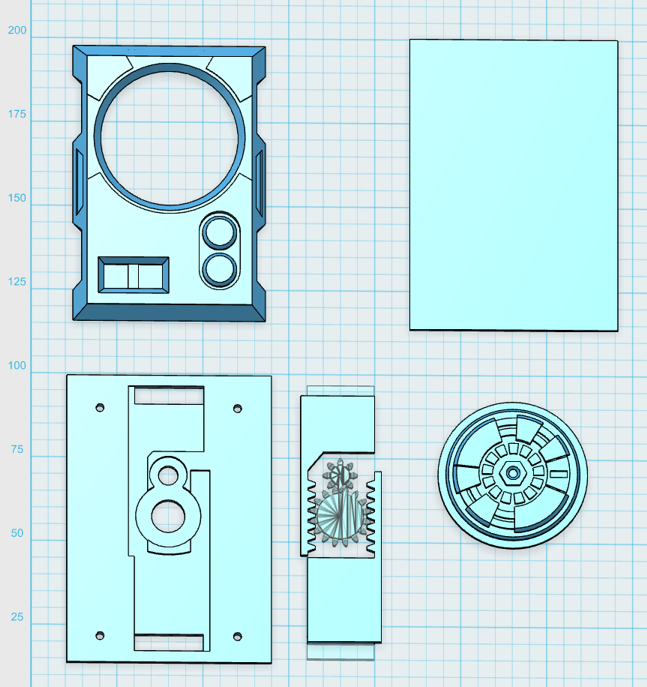

USB Access Hatch Cover

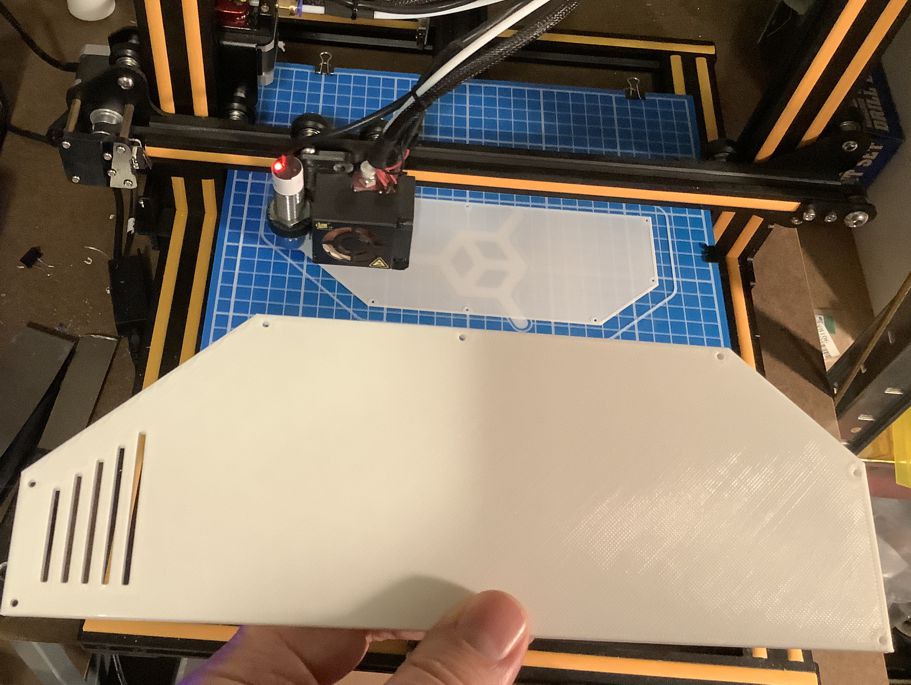

Wing Backs: Print time 4.35 Hours each

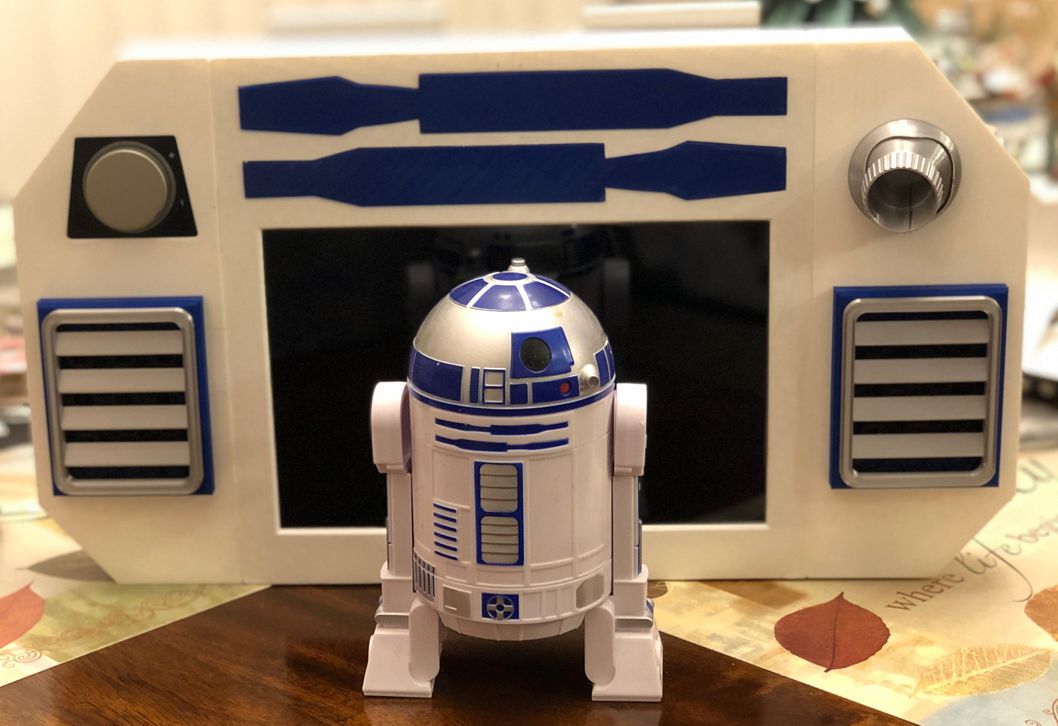

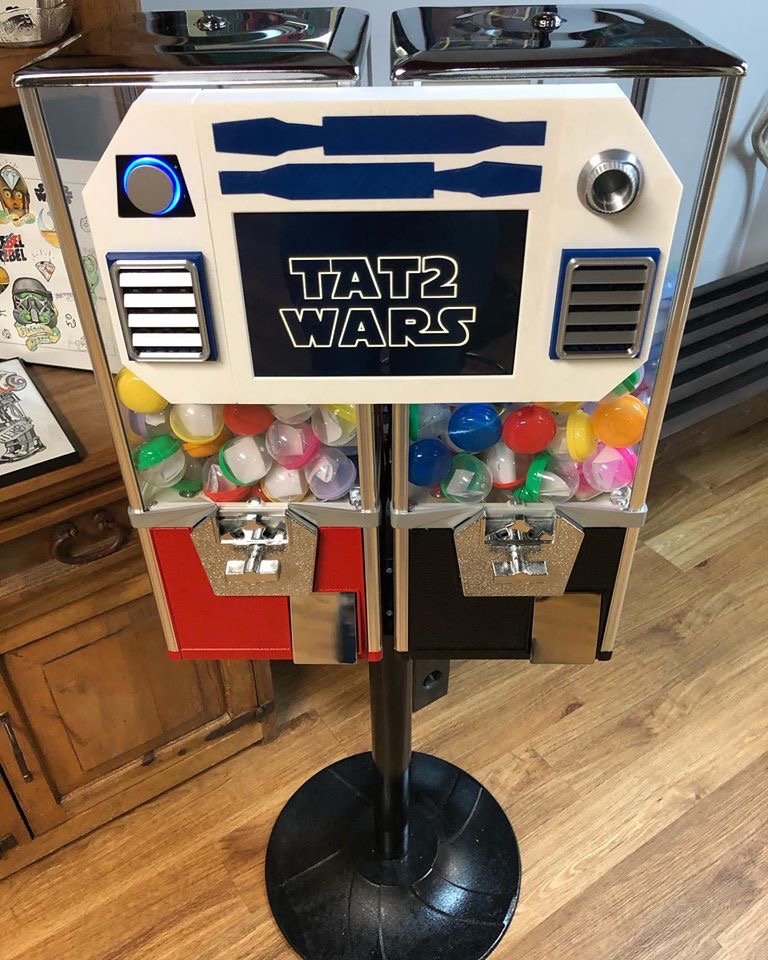

R2D2 posing with the R2 Unit

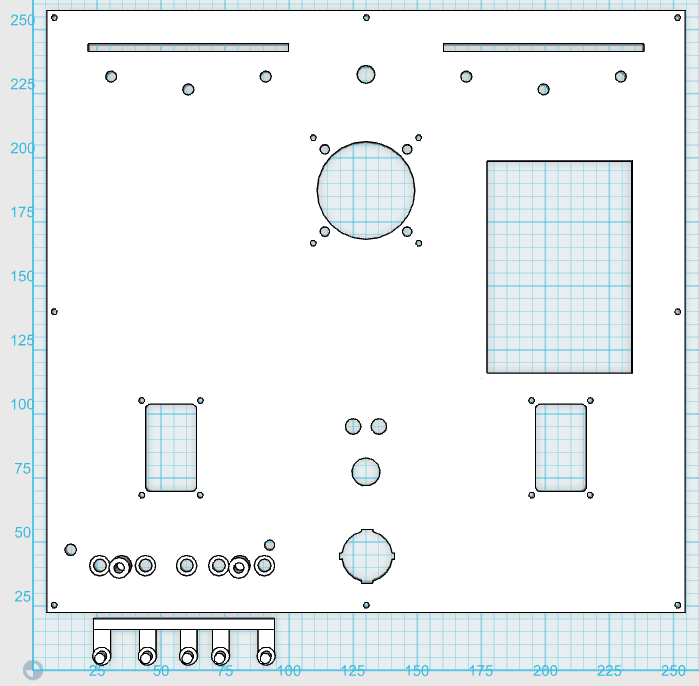

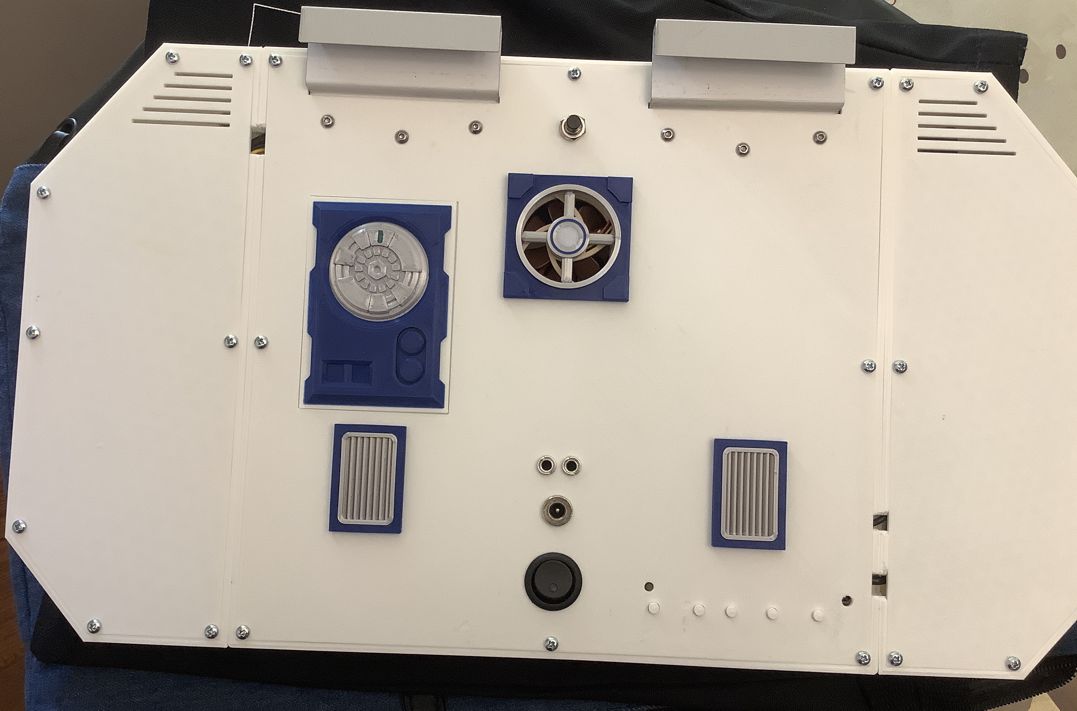

R2 Unit Back with hangers

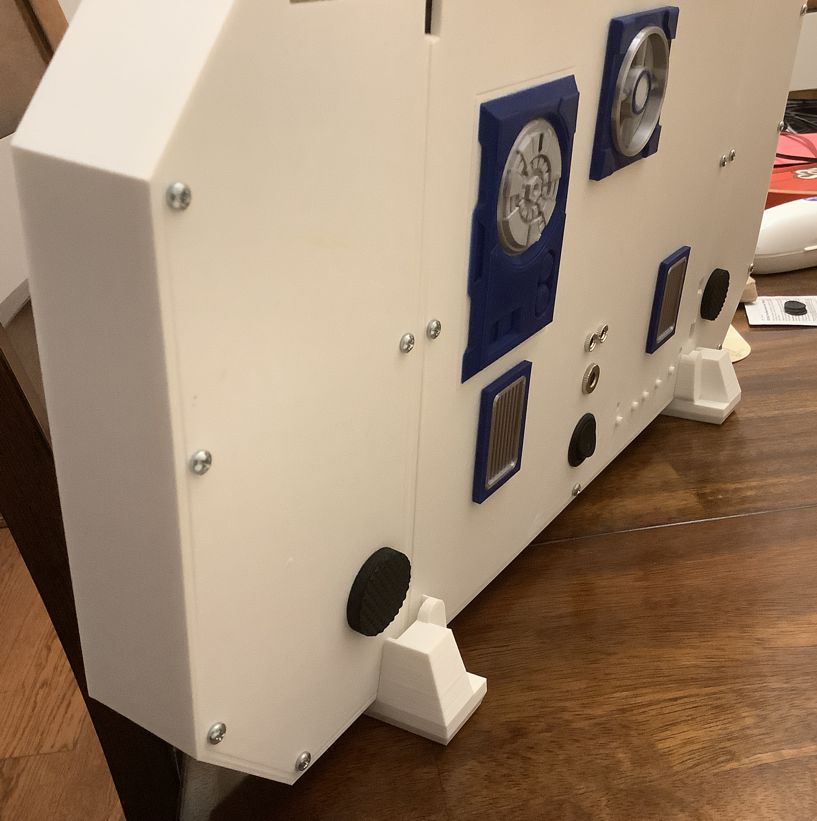

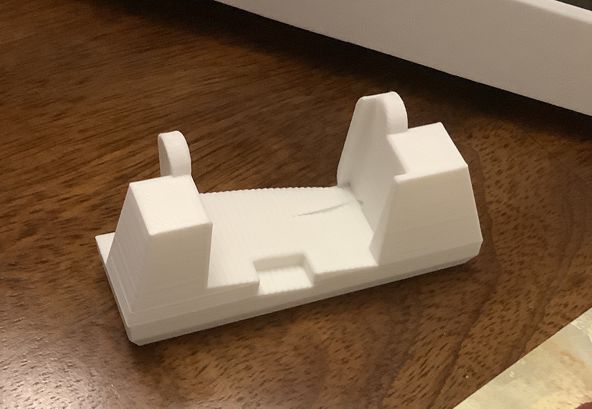

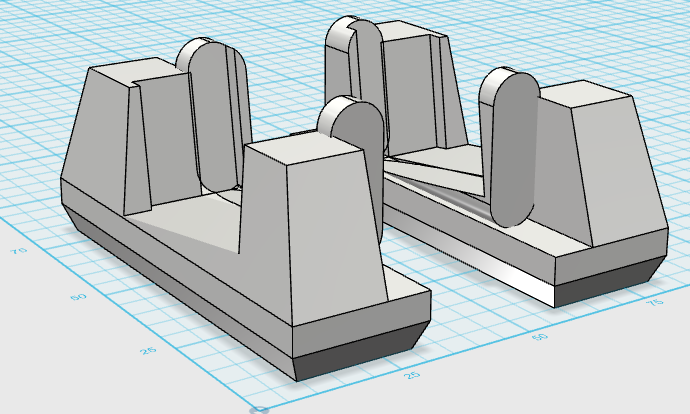

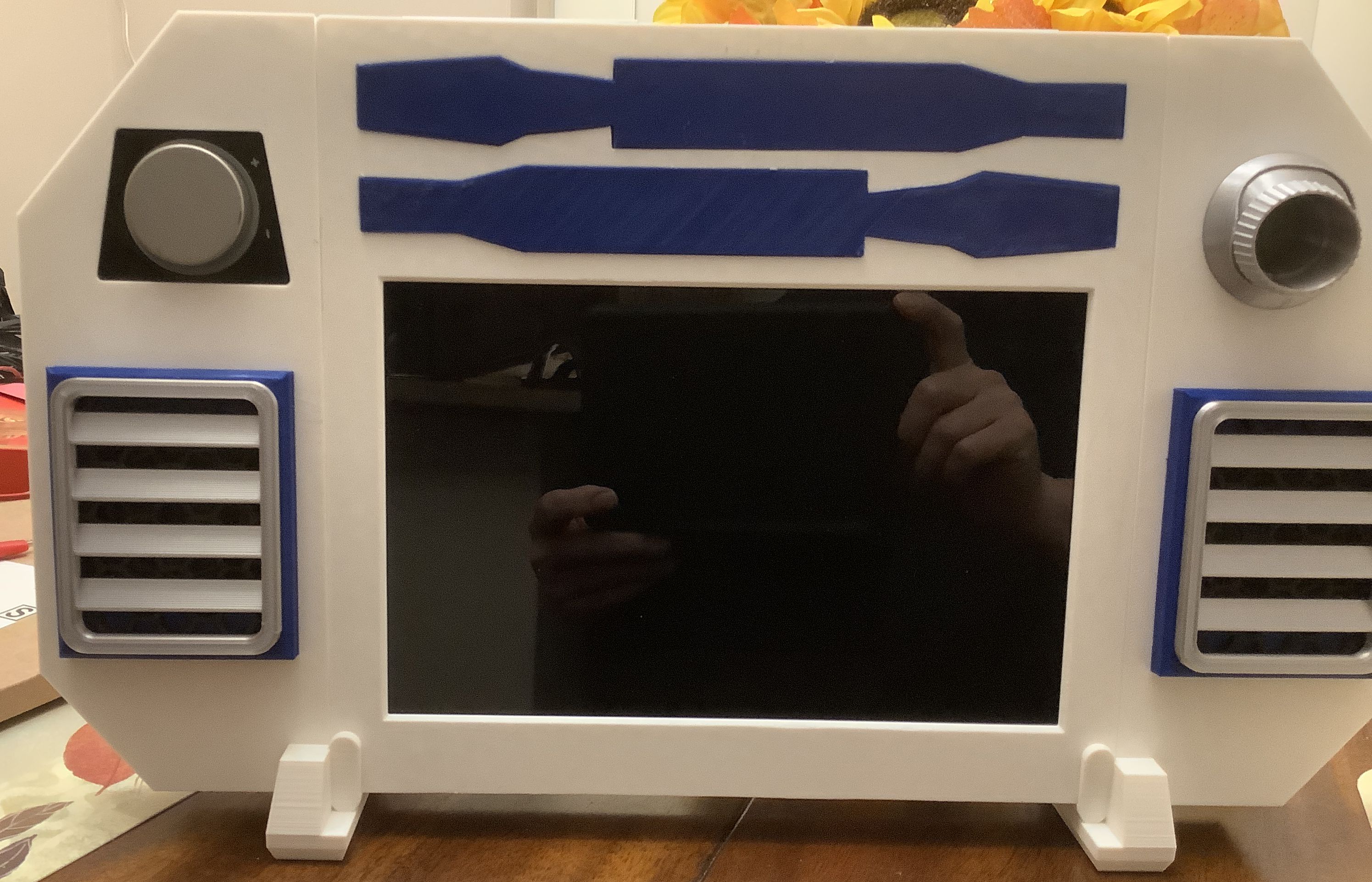

Because the R2 unit is a complete multimedia device with motion trigger presentation, I made the R2 Unit some removable feet for Desk or Table top display too.
This has been an epic journey! It was a lot of fun and a great project. One of the side benefits of a removable R2 Unit is that Brandi has been able to use the Machines for other events also. She hosted a Harry Potter event at the shop too.
R2G2 Hardware complete

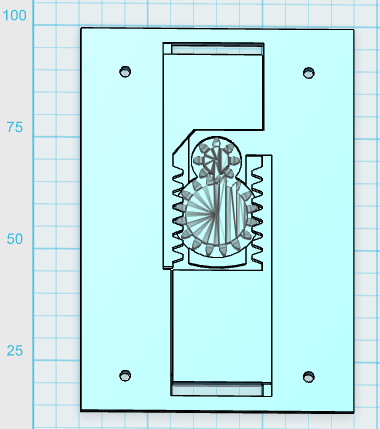

USB Access Hatch Cover gear mechanism.
Rotate the Data Port to the right to unlock the hatch for access to the flash drive.
